Product Description

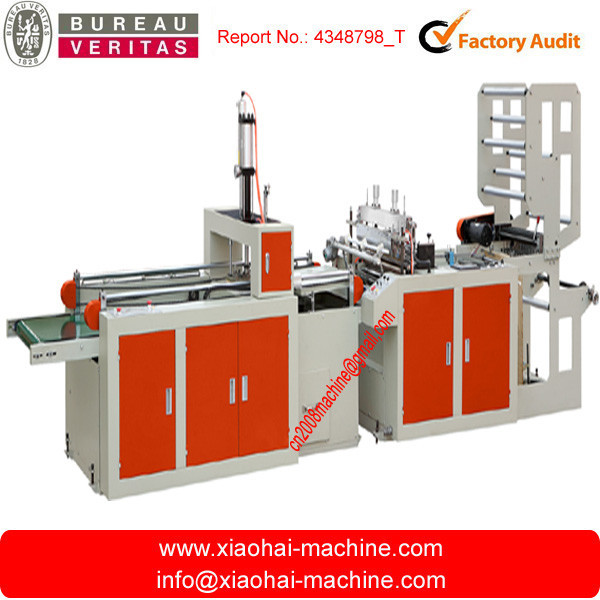

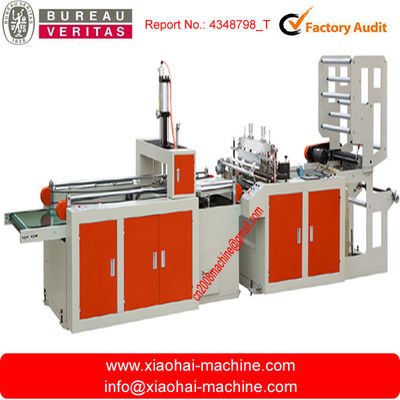

PE Film Biodegradable T - shirt Carry Plastic Bag Making Machine Single Line





Feature:



1. can make t-shirt bag width 200-800mm
2. single line,we also have double line machine

3. LDPE.HDPE hot sealing hot cutting t-shirt bag making.

4. automatic controlled by the computer (or touch screen) completely

5. Equipped the multi auto alarms with automatic stop design.

6. The whole pile of bags has the "Rocking System", which would not make the 2 pcs of bags sealing stick together.





Specification:



Model No.	DZC-500	DZC-600	DZC-700
Max.Width of Sealing & Cutting	450mm	550mm	650mm
Length of Sealing & Cutting	950mm	950mm	950mm
Speed of Bag-making	40~120pcs/min	40~120pcs/min	40~120pcs/min
Power of Main Motor	1.1kw	1.1kw	1.5kw
Weight of Machine	800kg	850kg	900kg
Dimension(mm)	4200×1200×1550	4200×1350×1550	4200×1450×1550





Usage:

1. This plastic t-shirt bag making machine is special for making unprinted or printed T-shirt bag.The machine finish the feeding, sealing, cutting, punching and transporting only in one process.

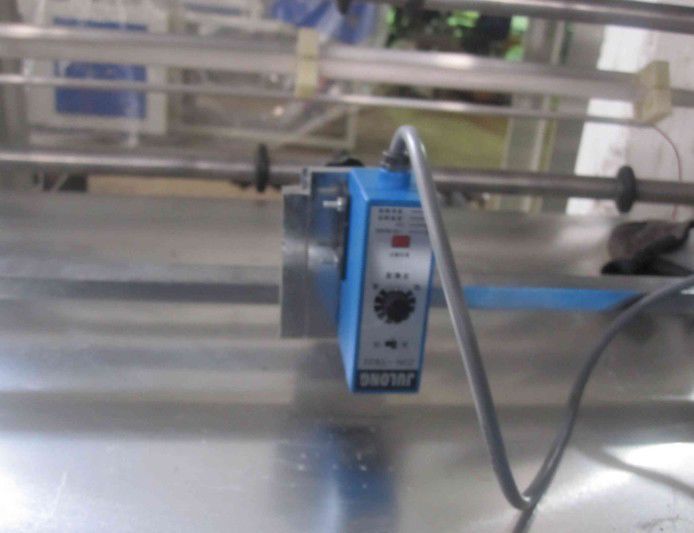

2. This machine is equipped with computer to set the bag length and batch etc.to make the bag automaticlly,also the machine is with photocell, automatic material feeding device,automatic constant temperature control device, electrostatic removing device,automatic counting and alarm device etc.It's easy operation, stable performance and with high producing speed. This machine is the best machine to make T-shirt bag if you want to save labor.





Applications:

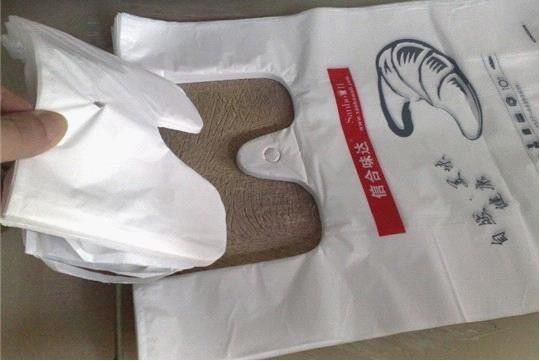

Unprinted or printed T-shirt bag





Optional equipment



Name

Up and down sealing knife(for bag thickness bigger than 0.2mm)





Remark:

We also have wider width machine,if you want to make special length and width bag,please feel free to contact us,we will provide you details.thanks.
