Detail Information
Product Name:	6061 Aluminum Profile	Application:	Costruction
Color:	Silvery	Alloy:	6005
Temper:	T5 / T6	Film Thickness:	10um
Standard:	ROHS/SGS	Surface:	Anodize
High Light:	6061 aluminum corrosion resistance , aluminum extrusion channel

Product Description

Descrition:

Powder Coating 6061 Aluminum Extrusion , Aluminum Extrusion Tube

Material	5,6,7 series
Temper	O, T4, T5,T6,T8
Surface treatment	Mill Finish,Anodized,Eletropharesis,Powder Coated, Wooden Finish, Polish
Colour	Silver,Black,Red,Blue,or as required
Length	As required
Shape	Plainen,bossed,or as per the drawings and samples
Fabrication	cutting,drilling,punching,bending,etc
Tolerances	As per your requirements
Package	inner plastic paper interleaving each piece profile,outer fixed by plywood, or as per your requirements
Payment terms	TT or LC at sight
Price terms	FOB;CIF;CNF
Delivery time	15-20 days after order confirmation
Certification	ISO 9001:2008;
Application	Decorations,Fence,Building,Aviation industry,Mechancal equipment
Capacity	5000 tons per month
Min order quantity	1 Metric ton

Order,payment,terms,shipment
1, Minimum order: 500kg per trial order 1 piece of sample free of charge provided by approval and kept for future mass production.
2, Sample Lead Time: 25 working days(15 days for making the tool and 10 days making the samples. Before sending the samples to customer, samples should pass strict test in our lab. )Production Lead time: it depends on customers' order quantity ( 30 working days after deposit).
3, Payment: (Can negotiate with customers, our usual practices are as follow)
4, Tooling:100% prepaid by T/T.
5, Parts:30% upon order confirmation and balance before delivery by T/T

Applications:

1 building with windows and doors aluminum windows and doors
2 dedicated CPU heat sink aluminum radiators
3 aluminum shelf aluminum, the difference between them lies in the different cross-sectional shapes, but are produced by hot melt extrusion Out.
4 industrial aluminum: Mainly used in automated machinery and equipment, the skeleton of the enclosure and companies according to their own customized mold machinery and equipment, such as assembly line conveyor, hoist, dispenser, test equipment, etc., electronic machinery industry and mostly clean room with too!

Specifications:

1. Primary Technical Data

1) Chemical composition

Material	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Impurity	Al
6063	0.2-0.6	<0.35	<0.1	<0.1	0.45-0.9	<0.1	<0.1	<0.1	<0.15	Rest
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	0.25	0.15	<0.15	Rest
6005	0.6-0.9	0.35	<0.1	<0.1	0.40-0.6	<0.1	<0.1	<0.1	<0.15	Rest

2) Mechanical property

Alloy	Temper	Tensile strength	Yield strength	Elongation
6063	T5	≥ 160Mpa	≥ 110Mpa	≥ 8%
6063	T6	≥ 205Mpa	≥ 180Mpa	≥ 8%
6061	T6	≥ 265Mpa	≥ 245Mpa	≥ 8%

3. Surface Treatment of Sections

(Class)	(μm),not diminish than		acid-resistant			abrasion resistance
	(Min-average film thickness)	(Min-part film thickness)	CASS		(S)
	(Min-average film thickness)	(Min-part film thickness)	(h)	Class	(S)	(f, g /μm)
AA10	10	8	16	≥9	≥50	≥300
AA15	15	12	32	≥9	≥75	≥300
AA20	20	16	56	≥9	≥100	≥300
AA25	25	20	72	≥9	≥125	≥300

Competitive Advantage:

1.High hardness, hard aluminum series.

2.Fair corrosion resistance. Heat treatable

3.Good workability. Good appearance

4.High quality and reasonable price.

5.Our product is your best choice.

FAQ For Saving Your Precious Time!

Q1:What's the thickness for anodizing?Can you do 15um?
A:Our normal thickness is about 10 um.Yes, we can do 15um and above.

Q2:What color you can do for powder coating?The thickness for powder coat?
A:We can do any color for powder coat as long as you can provide the color sample.Our normally powder coating thickness is 60-80um.

Q3:What color you can do for wood grain?
A:Our most popular colors are Western Red Cedar, Australia Cedar, Jarrah I, Jarrah II, Chestnut, Bush Cherry, Bush Wood, Western Wood, Snow Gum, etc.If you need any other colors, we can do according to the color samples you provide.

Q4:How's the weather resistance for wood grain finish D1010?
A:(1).Powder:Akzo Noble Interpon D1010.
(2).Wood grain film:Italian Menphis.
(3).Standard complied:American AAMA Standard.2603
(4).UV test:1000 hours.
(5).Salt spraying test:1000 hours.
(6).Normal weather:10 years color guarantee.

Q5:What certification do you have?What's your standard?
A:We have ISO certification.Our standard is DIN, AAMA, AS/NZS, China GB.

Q6:What's the delivery time for samples and mass production?
A:(1).2-3 weeks to make the new moulds and make free samples.
(2).3-4 weeks after receipt of deposit and confirmation of the order.

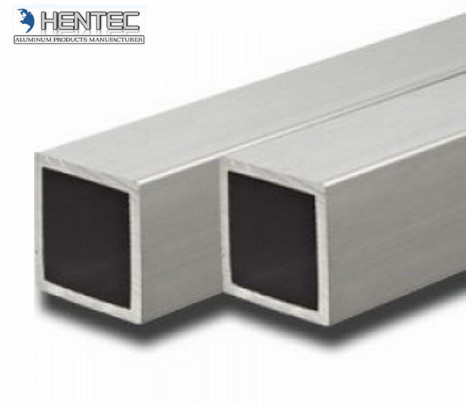

Powder Coating 6061 t6 aluminum extrusion , aluminum square tubing 0

Tag:

Product Details:
Place of Origin:	China
Brand Name:	Hentec
Certification:	ISO14001:2004, ISO9001:2000
Model Number:	HPF5821
Payment & Shipping Terms:
Minimum Order Quantity:	1 ton
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with wooden case or pallet for outer packing
Delivery Time:	30 working days after received the deposite
Payment Terms:	30% T/T in advance
Supply Ability:	10 000 ton per month

Powder Coating 6061 t6 aluminum extrusion , aluminum square tubing

6061 aluminum corrosion resistance

aluminum extrusion channel
