Paper Cake Tray Die Cutting Machine For Sticky Note , Beer Label

Product Details:
Place of Origin: Ruian,Wenzhou,China
Brand Name: Xiaohai
Certification: CE
Model Number: DC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Seaworthy Package
Delivery Time: 30days
Payment Terms: 30% downpayment and pay the balance before shipment afer test the machine in our factory.
Supply Ability: 20 Sets per month
Contact Now

Product Description

Paper Cake Tray Die Cutting Machine For Sticky Note , Beer Label

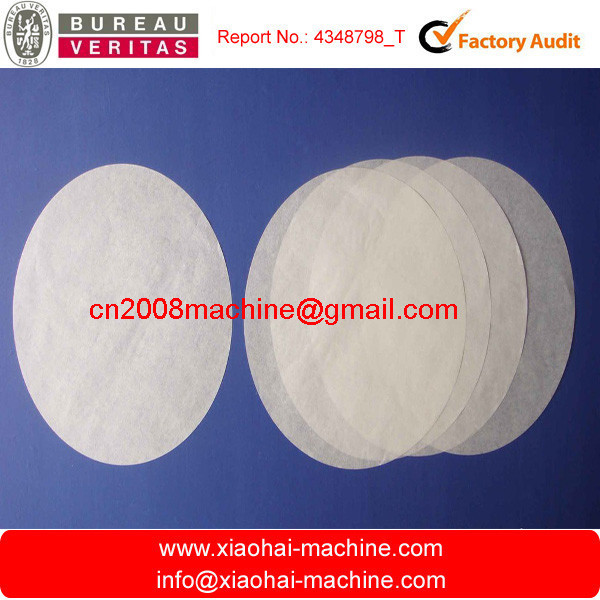

Material: any weight greaseproof paper



Cut by this machine paper cake tray edge without burr.

Each can cut five hundred to one thousand, three or four seconds at a time.



Model DC-150 DC-200 DC-220 DC-280
Round type Max Φ150 Φ200 Φ300 Φ350
Square type Max 110*110 135*135 200*200 250*250
Motor power 1.5KW 1.5KW 2.2KW 3KW
Max cutting thickness mm 150 150 180 180
Working speed 15 times/minute 15 times/minute 12 times/minute 12 times/minute
Machine size 1500*670*1300 1500*670*1500 1900*775*1358 1900*835*1500
Machine weight 200KG 400KG 500KG 650KG



Model

DC-350

DC-450

DC-560

Round type Max

Φ400

Φ480

Φ580

Square type Max

280*280

330*330

420*420

Motor power

4KW

5KW

5.5KW

Max cutting thickness mm

180 180 180

Working speed

10 times/minute

10 times/minute

8times/minute

Machine size

1900*850*1500

1900*960*1600

2030*1050*1720

Machine weight

800KG

1000KG

1200KG



Specifications

This post it die cut machine is used for die cutting/punching post it, cards, papers, pvc materials, booklets and etc.

post it die cut machine



Application:



DC series label punching machine is mainly used for die cut in-mould food or bear labels, garment hand tags (swing ticket), playing and business card, envelopes, aluminum plastic bags, greeting cards, notebooks, telephone and credit cards, brochures, and booklets, etc .



It can punching many different shape of material by changing moulds.



Features:



1. Adopt hydraulic drive system, make the die cut process easy and stable.

2. Moulds can be changed easily to punch different shape of products.

3. Use counter pressure device ensure that no movement occurs during die cutting.





Compares to other Chinese manufactures’ label punching machine, our machine has the following advantage.



1. Adopt counterpressure device to ensure that there’s no movement during the die cutting process, make the die cut process precise and stable.

2. We re-designed the machine structure and enlarged the machine size, this is good to our hydraulic pump, ensure the machine have a long product life

3. The position of motor is relocated to ensure a better heat dissipation.

4. Good appearence.
