Conveyor 23144CCW33 Self Aligning Roller Bearings Rolling Mill Gear Box

Contact Now

Detail Information
High Light:

self aligning roller bearing

,

Industrial Roller Bearings

Product Description

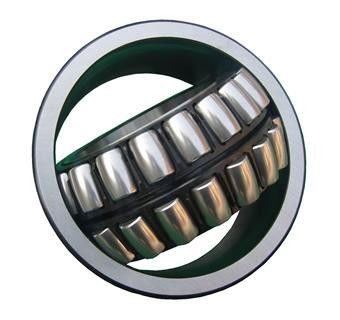

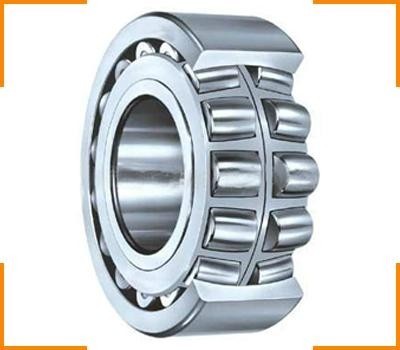

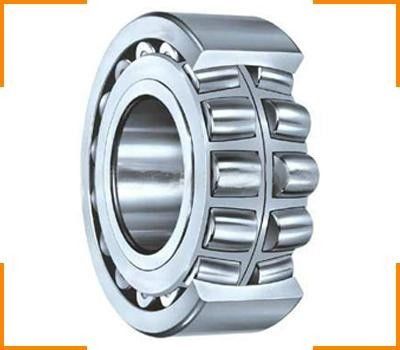

Conveyor 23144CCW33 Self Aligning Roller Bearings Rolling Mill Gear Box





Description:



Due to the relative complexity of the manufacturing process involved, spherical roller bearings are more expensive than other designs. They do, however, have longer service lives due to their inherently robust nature. These Spherical roller bearings are capable of running under extreme conditions with minimal lubrication for up to twice as long as conventional roller and ball bearings.

Some spherical roller bearing variants may include perforated outer ring and oil groove features in their design to facilitate easier lubrication and further extending their longevity. In general, this extended lifespan ? along with the savings on downtime for bearing replacement ? justifies the extra costs involved in fitting this type of bearing.

Certain ranges of  spherical roller bearing manufacturer are available with heavy-duty rollers and cages that are suitable for extreme demand applications such as vibratory screens. This kind of machinery makes short work of a conventional bearing due to the constant shock loading and linear deviation involved in its operation. In this sort of aggressive operational environment, the spherical roller bearing is the only type that delivers acceptable service life. This type of bearing can also be used at rotational speeds generally higher than those of other bearing designs. In some cases, this difference in limiting speed may be as high as 20 percent or more.

A spherical roller bearing featured two rows of inner roller elements, which are tapered towards its end much like a wine barrel. This type of bearing is self-aligning and typically used where high shock or misaligned loads are common. Spherical Roller Bearings wholesaler are comparatively expensive but generally have a longer life span than other bearing types.






Applications:



1. Air-blower

2. Metallurgical and Mining Machinery

3. Engineering Machinery

4. Hoisting and Conveying Machinery

5. Paper Manufacturing Machinery

6. Textile Machinery

7. Elevator Tractor





Specifications



Brand

WGB or OEM

Name

Spherical Roller Bearings

Model

 Conveyor 23144CCW33 Self Aligning Roller Bearings Rolling Mill Gear Box

Material

GCr15 or GCr15SiMn

Certificate

ISO9001:2008; ISO14001:2004

Precision

P0, P6

Clearance

C2, C0, C3, C4, C5, etc.

Cage Type

CA, CC, MB, EMA, E, etc.

Seals Type

2CS

Package

pallet, wooden case, industrial package or as customers' requirement

Price

FOB, CFR, CIF

Delivery Time

30~60 days





Boundary dimensions (mm) load ratings(KN) Bearing No. Limiting speeds(r/min) Mounting dimensions(mm) Mass(kg)
da Da ra
ｄ D B rsmin Cr Cor 　 　 Oil Grease min max max
220 340 90 3.0 783 1860 23044MB 23044MBK 600 750 234 326 2.5 28.8
  340 90 3.0 1090 2040 23044CC 23044CCK 950 1200 234 326 2.5 29.7
  340 118 3.0 1370 2760 24044CC 24044CCK30 750 1000 234 326 2.5 38.1
  370 120 4.0 1060 2420 23144MB 23144MBK 600 750 238 352 3.0 55
  370 120 4.0 1610 2900 23144CC 23144CCK 700 950 238 352 3.0 51.5
  370 150 4.0 1900 3580 24144CC 24144CCK30 700 950 238 352 3.0 62.3
  400 108 4.0 1500 2380 22244CA 22244CAK 730 900 238 382 3.0 61.5
  400 144 4.0 2130 3720 23244CC 23244CCK 670 900 238 382 3.0 78.5
  460 145 5.0 2140 3290 22344CA 22344CAK 660 800 242 438 4.0 120
240 360 92 3.0 816 2120 23048MB 23048MBK 530 670 254 346 2.5 35.5
  360 92 3.0 1160 2220 23048CC 23048CCK 850 1100 254 346 2.5 32.4
  360 118 3.0 1440 2930 24048CC 24048CCK30 700 950 254 346 2.5 40.8
  400 128 4.0 1230 2910 23148MB 23148MBK 500 630 258 382 3.0 55.5
  400 128 4.0 1840 3310 23148CC 23148CCK 670 850 258 382 3.0 63.7
  400 160 4.0 2160 4090 24148CC 24148CCK30 670 850 258 382 3.0 76.9
  440 160 4.0 2560 4620 23248CC 23248CCK 630 800 258 422 3.0 107.3
　 500 155 5.0 2580 3640 22348CA 22348CAK 600 750 262 478 4.0 153
260 400 104 4.0 1030 2520 23052CA 23052CAK 500 630 278 382 3.0 515
  400 104 4.0 1460 2850 23052CC 23052CCK 900 1100 278 382 3.0 47.7
  400 140 4.0 1840 3850 24052CC 24052CCK30 630 850 278 382 3.0 62.4
  440 144 4.0 1470 3410 23152MB 23152MBK 450 560 278 422 3.0 95.3
  440 144 4.0 2270 4190 23152CC 23152CCK 600 800 278 422 3.0 88.2
  440 180 4.0 2730 5330 24152CC 24152CCK30 600 800 278 422 3.0 107.6
  540 165 6.0 2860 4310 22352CA 22352CAK 480 700 288 512 5.0 191
280 420 106 4.0 1110 2760 23056CA 23056CAK 450 560 298 402 3.0 62
  420 106 4.0 1580 3030 23056CC 23056CCK 700 900 298 402 3.0 50.9
  420 140 4.0 1960 4100 24056CC 24056CCK 600 800 298 402 3.0 65.8
  460 146 5.0 1635 3730 23156CA 23156CAK 430 530 302 438 4.0 103
  460 146 5.0 2380 4410 23156CC 23156CCK 560 750 302 438 4.0 94.1
  460 180 5.0 2810 5480 24156CC 24156CCK30 560 750 302 438 4.0 113.2
  500 130 5.0 2150 3480 22256MB 22256MBK 800 900 302 478 4.0 112.3
　 580 175 6.0 3490 5200 22356CA 22356CAK 450 600 308 552 5.0 238
300 460 118 4.0 1290 3160 23060MB 23060MBK 430 530 318 442 3.0 75.2
  460 118 4.0 1910 3800 23060CC 23060CCK 670 850 318 442 3.0 71.4
  460 160 4.0 2430 5160 24060CC 24060CCK30 530 700 318 442 3.0 94.1
  500 160 5.0 2250 4550 23160MB 23160MBK 500 700 322 478 4.0 133
　 540 140 5.0 2520 2950 22260CA 22260CAK 700 850 322 518 4.0 134





Automatic grinding workshop

Conveyor 23144CCW33 Self Aligning Roller Bearings Rolling Mill Gear Box 0



Heat Treatment Line

Conveyor 23144CCW33 Self Aligning Roller Bearings Rolling Mill Gear Box 1



Grinding workshop

Conveyor 23144CCW33 Self Aligning Roller Bearings Rolling Mill Gear Box 2
