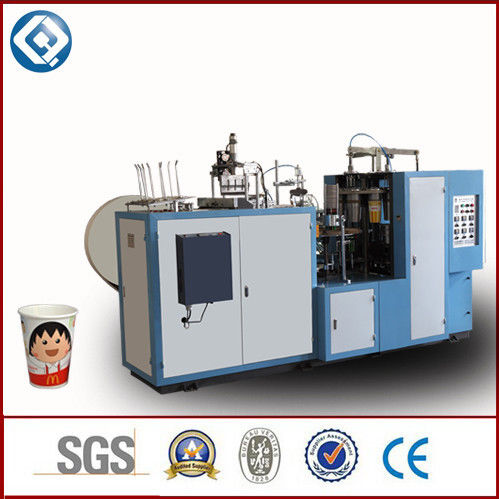

Single PE Coated Paper Tea Cup Making Machine With High Speed 50 - 60 Cups/min

Product Description

50 - 60 Cups Single Pe Coated Paper Cup Making Machine For Cup

Main feature:

1, Output is improved: The productivity is improved from 50-60 pcs/min to 60-70 pcs/min.

2, Stepping-motor is used to control the bottom paper feeding, so that the gap between the bottom-paper is controlled within 0.1mm, which can make machine more stable and save raw material. With light eyes under the paper roll, the machine will be stopped when out of bottom-paper, avoiding the waste in paper.

3 , Gear drive is adopted to avoid the defect of loose gap of chain drive.

4, We use a self-lubrication system in the machine, which reduces the friction between the parts. And we do not need to add the oil manually. Sometimes worker are not willing to add the oil everyday. In this case the machine can be maintained without manually fueling.

5, This device adopt non-contact multi-point light control switch (such as in paper holder, cup tube ,bottom paper and so on, according to customer demand). It can detect working situation, then achieve a fault alarm preventing machine from collision, makes the machine more stable and longevous.

6, Paper tube station uses independent cam to handle cup holder. This is advanced in stability and will not make noise when it works.

7, The machine is equipped with gear motor simplifies the complicated system and makes the machine more stable.

Quick Detail:

Description:

Model ZBJ-H12 Paper Cup Machine is an automatic machine with multi-working station, functions of failure alarm, photocell detection, counter and easier maintain, safer operation and. the advantages of humanism design.

Specifications:

Competitive Advantage:

1. We using Divided box is 125 type, which has two years warranty.

2. We using Speed reducer: 1:30 100 type

3. We using φ30 import steel shaft for the machine

4. We using 3 Cam to control the folding process.

5. We using two times paper feeding process.

6. We using Multilayer suckers for the paper taking

Applications:

Produce for Coffee Cup, Tea Cup, Juice Cup, Ice Cream Cup etc

Making Process:

Printing Step: The Pe coated paper should be printed with different design and different color. So when we make the paper, there will be beautiful design with logo on the cups.

Cutting Step: In this step, you should decide the size of the cup, so we can cut the paper fan in decided size.

Paper Forming Step: You should put the paper fan on the machine, so the paper fan could be folded by the paper cup machine. Then the paper cups are formed, we can use the cups and enjoy delicious drinks.

Packing:

FCL: paper cup machine with wood tray and plastic film.

LCL: paper cup machine with wood box and plastic film.

We will Spraying oil in paper cup machine for keeping rust away
