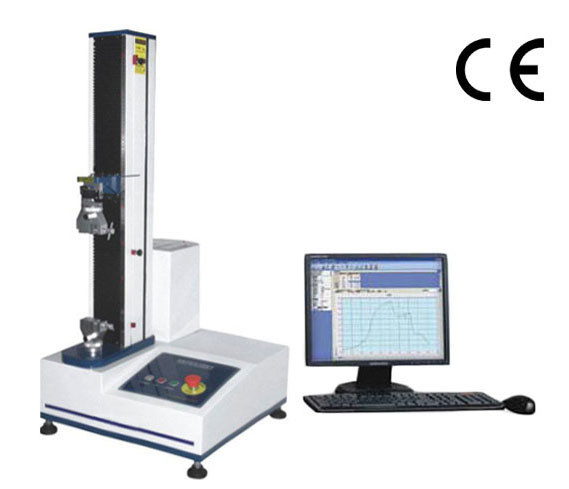

Kraft and Tissue Tensile Strength Testing Machine Paper Testing Instrument

Product Details:
Place of Origin: China
Brand Name: LIYI
Certification: ISO 9001: 2008 ; CE
Model Number: LY-1068
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Standard Export Wooden Case
Delivery Time: Within 15 days after receiving the payment
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 100 piece/month

Detail Information

Range Of Speed: 50~500 Mm/min Motor: AC Motor
Resolution: 1/150,000 Capacity Choice: 1, 2, 5,10, 20, 50,100, 200, 500 Kg Optional
Model: LY-1068 Power: 1 PH, AC 220 V, 50/60 Hz

Product Description

Kraft and Tissue Tensile Strength Testing Machine AC Motor Accuracy




Product Introduction:
Quickly detail :

Model

LY-1068

Range of speed

50~500 mm/min

Motor

AC motor

Resolution

1/250, 000

Capacity choice

1, 2, 5,10, 20, 50,100, 200, 500 kg optional

Whole stroke

850 mm (can be customized)



Design standards:

ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, ASTM D638, ISO527.



Application:

This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack

and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles,

paper, board and finished products.



Characteristics:

1. That Using the computer as the main control machine plus the special testing software of our

company can conduct all of testing parameter, work state, collecting data&analysis, result display

and printing output.

2. Have steady performance, high accuracy, powerful software function and easy operation.

3. Use the USA high-precision load cell.





Specifications:

Model

LY-1068

Range of speed

50~500 mm/min

Motor

AC motor

Resolution

1/250, 000

Capacity choice

1, 2, 5,10, 20, 50,100, 200, 500 kg optional

Whole stroke

850 mm (can be customized)

Accuracy

± 0.5 %

Force relative error

± 0.5 %

Displacement relative error

± 0.5 %

Test speed relative error

± 0.5 %

Effective testing space

120 mm

Accessories

computer, printer, system operation manual

Optional accessories

stretcher, air clamp

Operation method

Windows operation

Weight

70 kg

Dimension

(W * D * H) 58 * 58 * 145 cm

Power

1 PH, AC 220 V, 50/60 Hz

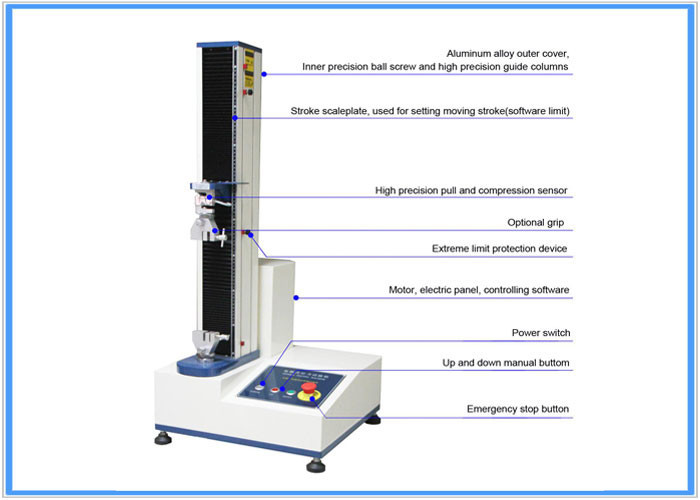

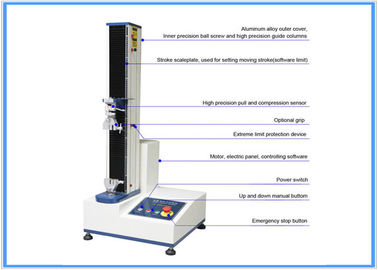

Safety Device:

Stroke protection

Upper and lower protection, prevent over preset

Force protection

system setting

Emergency stop device

Handling emergencies





Software functions:

1. Use windows working platform, set all parameter with dialog forms and operate easy;

2. Using a single screen operation, do not need to change the screen;

3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;

4. Plan test sheet mode freely;

5. Test data can be directly appeared in the screen;

6. Compare multiple curve data through translation or contrast ways;

7. With many units of measurement, the metric system and british system can switch;

8. Have automatic calibration function;

9. Have user-defined test method function;

10. Have test data arithmetic analysis function;

11. Have the function of automatic magnification, to achieve the most appropriate size of graphics.



Kraft and Tissue Tensile Strength Testing Machine Paper Testing Instrument 0
