New Style Maxi Skirts Woman Fashion Linen Skirts
|
Product Details:
|
|
| Place of Origin: | Zhejiag,China |
|---|---|
| Brand Name: | HAICHINA |
| Certification: | CE |
| Model Number: | DZH |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | Plywood case for export transportation |
| Delivery Time: | 35 working days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 50 sets /month |
|
Detail Information |
|||
| Type: | Automatic Cartoning Machine | Packing Capacity: | 100-260 Packs/min |
|---|---|---|---|
| Total Power: | 380V，50Hz，2.2Kw | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Max.size Of Box(L*W*H): | 200*85*70mm | Min.size Of Box(L*W*H): | 65*25*15mm |
| Specification Of Box: | 250-350g/m2 | Max.size Of Leaflet(L*W): | 220*180mm |
| Min.size Of Leaflet(L*W): | 100*100mm | Specification Of Leaflet: | 60-70g/m2 |
| High Light: | box making equipment,cardboard box making machine |
||
Product Description

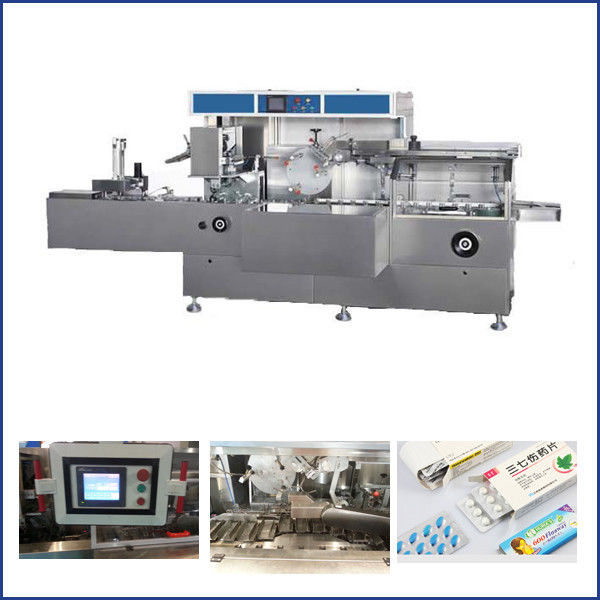

High Performance Cartoner Carton Wrapping Machine For Tube / Tray
Quick Detail:
|
Type |
Automatic Cartoning Machine |
|
Applications |

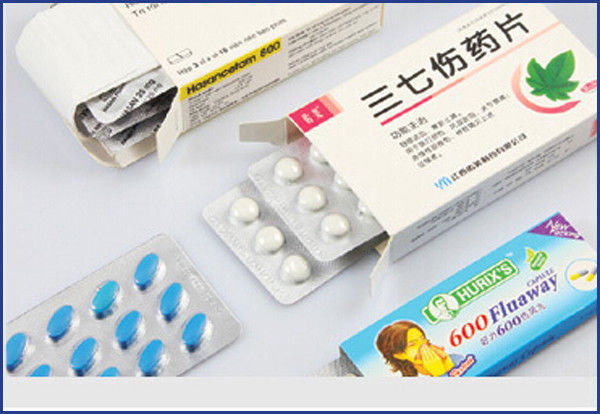

pharmacy, food, health products, tea, cosmetic product, stationary, audiovisual products etc |
|
Packaging Material |
paper Box |
|
Certificate |
CE ISO 9001 |
|
After service |
Engineers available to service machinery overseas |
|
Packaging detail |
Plywood case is the usual exporting packing , also can packing according to the customer's requirements |
|
Delivery Time |
30 days after got Your down payment |
High Speed Cartoning Machine is new model which innovation design base on bringing in foreign advanced technology, also strictly according to pharmaceutical industry “GMP “
standard to manufacture. With high efficiency, high performance production capacity, leaflet folding and conveying, carton opening and forming, posterior pushing structure and related technology all reach Europe and USA
standards;
Simple design and posterior continuous pushing structure makes operation and maintenance more convenient;
three equal rotation opening carton and under twice preforming device to ensure that carton open and form
completely.
This model is automatic high speed continuous cartoning machine which is high performance product
incorporates pneumatic-photo-electro-mechanic.
Feature :
1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2. Adopt human-machine operation system.
3. Automatically displaying device for trouble, speed and finished products counting.
4. Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
5. No products not suction leaflet, no leaflet not suction carton.
6. Automatic detection and rejection device for lacking blister goods and leaflets.
7. Protecting automatically for overloading.
8. stable performance , operation is easy.
Specification
|
Model |
WZH-200E |
|
Production capacity |
100-260box/min |
|
Max.size of box(L*W*H) |
200*85*70mm |
|
Min.size of box(L*W*H) |
65*25*15mm |
|
Specification of box |
250-350g/m2 |
|
Max.size of leaflet(L*W) |
220*180mm |
|
Min.size of leaflet(L*W) |
100*100mm |
|
Specification of leaflet |
60-70g/m2 |
|
Total power |
380V 50HZ 2.2Kw |
|
Overrall Dimension(L*W*H) |
4450*1460*1700mm |
|
Weight |
2500kg |
