SPC 250B Packaging Machinery Stainless Steel Host Shrink Sleeve Labeling Machine

Product Details:
Place of Origin: China Shandong
Brand Name: China Coal
Certification: CE, SGS, TUV, BV, ISO, MA
Model Number: SPC-250B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Contact Us
Packaging Details: carton
Delivery Time: 3 days
Payment Terms: TT, Paypal, Western Union
Supply Ability: 5000

Detail Information

Model: SPC-250B Capacity: 250 Bottle/min
Input Voltage: ∮3, 380/220VAC Input Power: 3.0KW
Size Of Host Machine: 2100L*850W*2000H Applicable Diameter Of Bottle Body: Ф28 Mm-Ф125mm
Applicable Length Of Label: 30 Mm~250mm Applicable Thickness Of Label: 0.03 Mm~0.13 Mm
Applicable Internal Diameter Of Paper Tube: 5″~10″adjust It At Will
High Light:

vacuum packing machine

,

automatic packing machine

Product Description

Features of Stainless Steel Host Shrink Sleeve Labeling Machine

1. All-cover type stainless steel host machine: the whole machine is waterproof as well as rustless.
2. Adjustable cutter head: uniquely cyclotron cut-off, double sided cutting edge with a long service life.
3. Single positioning centre guide pillar: a more stable for label delivery.
4. Synchronous bottle divider: a more stable transmission for bottle.
5. Bottom set of label brush: a more precision for casting label.
6. Label-controlling electric-eye shelf: unique combination of tail and electric-eye to improve the precision for cutting off the membrane materials.
7. Push-button control cabinet: a more humanized operation.
8. Independent feeding material shelf: the position of the material shelf is optional at will.

Configuration Specification of SPC 250B Packaging Machinery Stainless Steel Host Shrink Sleeve Labeling Machine

SPC 250B Packaging Machinery Stainless Steel Host Shrink Sleeve Labeling Machine adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer; besides, it adopts the positioning module to ensure the casting label precise, rapid and stable.
Applicable Bottle Types
Various kinds of bottle types, for example: round bottle, square bottle, flat bottle, curved bottle and cup-shaped, etc.

Technique Parameter of Stainless Steel Host Shrink Sleeve Labeling Machine

SPC 250B Shrink Sleeve Labeling Machine Packaging Machinery Stainless Steel Host Labeling Machine

Input Power

3.0KW

Input Voltage

∮3, 380/220VAC

Production Efficiency

250 bottle/min

Size of Host Machine

2100L*850W*2000H

Applicable Diameter of Bottle Body

Ф28 mm-Ф125mm

Applicable Length of Label

30 mm~250mm

Applicable Thickness of Label

0.03 mm~0.13 mm

Applicable Internal Diameter of Paper Tube

5″~10″adjust it at will

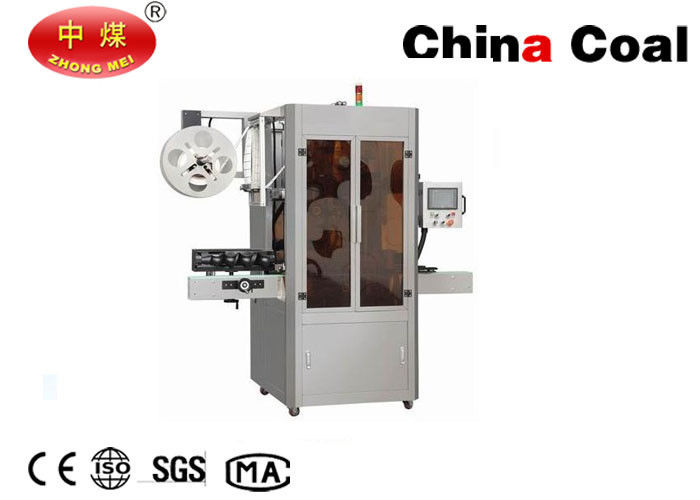

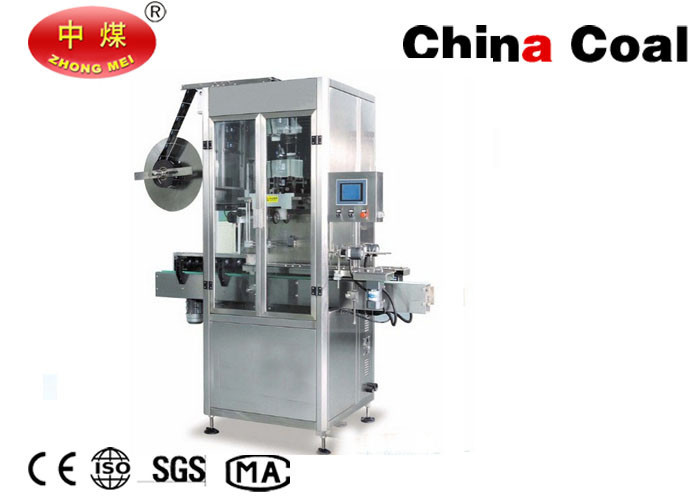

Feature Pictures of Stainless Steel Host Shrink Sleeve Labeling Machine

SPC 250B Shrink Sleeve Labeling Machine Packaging Machinery Stainless Steel Host Labeling MachineSPC 250B Shrink Sleeve Labeling Machine Packaging Machinery Stainless Steel Host Labeling Machine
