DZH 120 Automatic Cartoning Machine , Carton Box Packaging Machine

Product Details:
Place of Origin: Zhejiang, China (Mainland)
Brand Name: HAICHINA
Certification: CE
Model Number: DZH
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Packaging Details: wooden case for over sea shipment
Delivery Time: 30 working days
Payment Terms: L/C or T/T
Supply Ability: 60 Sets / Month

Detail Information

Packaging Type: Carton,cartons Driven Type: Electric
Machine Dimension(L× W× H): 3200mm* 1200mm* 1900mm Machine Weight: 1500kg
Total Power: 220V 50Hz 1.5Kw Packaging Material: Standard Export Wooden Case, Suit To Sea Shipping
Encasing Speed: 30-120 Case/min
High Light:

cardboard box making machine

,

box making equipment

Product Description

DZH 120 Automatic Cartoning Machine , Carton Box Packaging Machine



 Quick Detail:



Type

Automatic cartoning  machine

Applications

pharmacy, food, health products, tea, cosmetic product, stationary, audiovisual products etc

Packaging Material

Paper Box

Certificate

CE   ISO 9001

After service

Engineers available to service machinery overseas

Packaging detail

Plywood case is the usual exporting packing , also can packing according to the customer's requirements

Delivery Time

30 days after got Your down payment


Description:

This equipment is new model developping base on integrated domestic and foreign vanguard technology .It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
This machine is suitable for blister package product, adjust automatic feeding structure conveniently, setup quantity of blisters on touch screen randomly. On line product feeding and detecting, leaflet fold(1-4folds) and feeding, leaflet detecting, canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or prod cut and finished product out.


Feature :


1, International famous brand of electrical component such as PLC touch screen, frequency inverters, etc;


2,  Adopt human-machine interface;


3, Automatically displaying device for malfunction, speed and finished products counting;


4, Automatic detection and rejection device for lacking of blishters or leaflet.


5, Stable performance ,operation is easy

The Film Packing Machine can be installed with HaiChina other machine and equipment to product line.


SPecification


PROJECT PARAMETER
Encasing speed 30-120 case/min
Box Quality requirement 250-350g/m*m
Dimension range (L× W× H) (50-180)mm* (30-85)mm* (15-50)mm
Leaflet Quality requirement 50-65g/m²
Unfolded leaflet specification L× W (80-300)mm*(70-210)mm
Folded leafilet specification(1-4)*(L× W) (70-210)mm*(20-40)mm
Compressed air Working pressure 0.5-0.7mpa
Air consumption 120-160L/min
Power supply 220V 50HZ
Motor power 1.5kw
Machine dimension(L* W* H) 3200mm* 1200mm* 1900mm
Machine weight 1500kg



Layout drawing for DZH 120 Automatic Cartoning Machine , Carton Box Packaging Machine

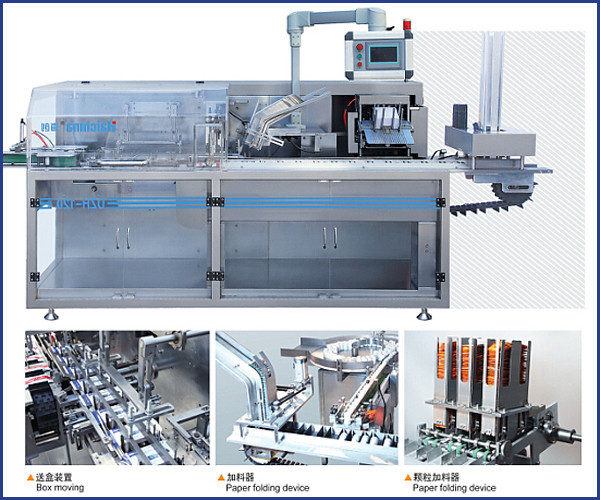

DZH 120 Automatic Cartoning Machine , Carton Box Packaging Machine 0

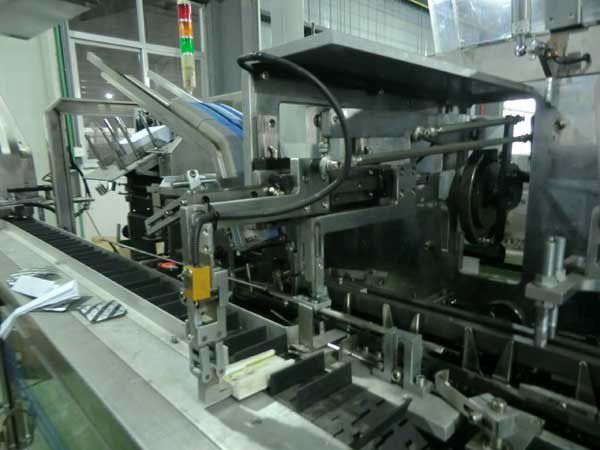

DZH 120 Automatic Cartoning Machine , Carton Box Packaging Machine 1
