Full Automatic Plastic Packaging Machinery For Food / Cosmetic Product / Tea

Product Details:
Place of Origin: Wenzhou China
Brand Name: HAICHINA
Certification: CE
Model Number: HC 120
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: Plywood case for export transportation
Delivery Time: 60 DAYS
Payment Terms: TT
Supply Ability: 50 SETS PER MONTH

Detail Information

High Light:

auto pack machine

,

food packaging equipment

Product Description



Full Automatic Plastic Packaging Machinery For Food / Cosmetic Product / Tea







Quick Detail:



Type

Automatic packaging machine

Applications

pharmacy, food, health products, tea, cosmetic product, stationary, audiovisual products etc

Packaging Material

Plastic PVC  BOPP ETC

Certificate

CE   ISO 9001

After service

Engineers available to service machinery overseas

Packaging detail

Plywood case is the usual exporting packing , also can packing according to the customer's requirements

Delivery Time

60 days after got Your down payment







Description:



PLC control, easy to operate.
Touch screen and friendly interface.
The data are showed on touch screen.
Auto feeding device and Auto counter.
Multi-function diagnose software, provide friendly and powerful help.
High grade security protect device, protect the safety of machine and operator.
Special design, save cost.
High precision transducer, stepless variable speed.

Compact structure, stable performance, easy to operation and maintenance.

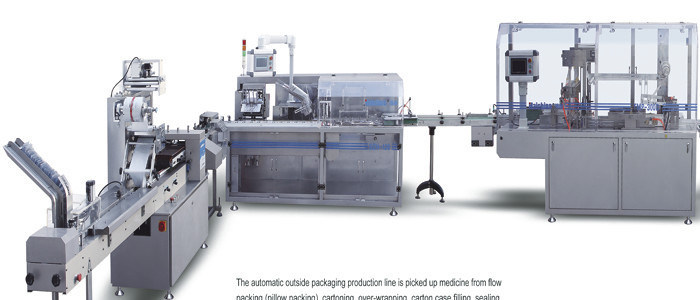

The HC120 Automatic Packaging Production Line is picked up medicine from flow packaging(pillow pack),cartoning,Over wrapping ,case erecting ,filling and strapping, The Whole line is intergraded flow packaging machine, Cartoning machine, Weighting One line Test device, Over wrapping machine , Case Erector, Case Filling, and Case Sealing machine, Printer, strapping machine and So on. The line is adopted moudolar  Construction, User can choose suitable machine according to user’s production requirements. The line is in High Effective, Automatic sort, and reduce Human cost. The production line is suit to Pharmaceutical, Cosmetics , and Health care industries







Specifications for Flow packaging machine in Packaging line





Model:

HC120

Packing capacity

30-230

Bag size (mm) double cutter



L(60-190)*W(30-180)*H(2-40)

Max. width of film

250mm

Power supply

AC380V 50Hz, 2.65KW (as buy request)

Weight

750kg

Overall dimension (L*W*H,mm)

3350*650*1550MM





Specifications for Cartoning machine in Packaging line





PROJECT

PARAMETER

Encasing speed

30-120Boxes /min

Box

Quality requirement

250-350g/㎡

Dimension range

(L×W×H)

(50-180)mm×(30-85)mm×(15-50)mm

Leaflet

Quality requirement

50-65g/m2

Unfolded leaflet specification

(L×W)

(80-300)mm×(70-210)mm

Folded leaflet specification(1-4)(L×W)

(70-160)mm×(20-40)mm

Compressed air

Working pressure

0.5-0.7mpa

Air consumption

120-160L/min

Power supply

220V  50HZ

Motor power

1.5kw

Machine dimension(L×W×H)

3200*1200*1900

Machine weight

1500kg





Specification for Cellophane over wrapping machine for Packaging line





Model

HC-120

Packaging material

BOPP film, PVC film

Production capacity

5-30 packs/min.

Bag size

L(50-300)*W(40-220)*H(10-90)mm

Power supply

AC380V 50Hz, 6.5Kw

Working pressure

0.6 Mpa

Air consumption

400L/min.

Weight

750kg

Overall dimension (L*W*H, mm)

2300x910x1850

Input table dimension (L*W*H,mm)

1650x320x930







Competitive Advantage:



1. Our company has been dedicated to producing packaging line since 2008 owning complete producing technology and abundant managing experience.

2 Our company specializes in the development, production, distribution and service of packaging machinery, pharmacy machinery, food machinery and cosmetic machinery. They have been deeply favored by customers and have established good reputation.



3  I will send professional and technical engineer go to your work shop to finished the installments the machine.



4 We will deliver the materials strictly according to the the delivery date noted on the contract.

5 We have ISO 9001 and  CE certificate, and the Third Party Inspection Certificates, also can be provided according to customers’ requirements is also welcomed by some customers.

6.We do OEM business

7.the machine use servo motor control the film feeding, save the packaging cost.





Layout Drawing for Hc 120 Automatic Packaging Machine for Packaging line:





Full Automatic Plastic Packaging Machinery For Food / Cosmetic Product / Tea 0





Show Room For Hc 120 Automatic Packaging Machine Line







Full Automatic Plastic Packaging Machinery For Food / Cosmetic Product / Tea 1





Connect Parts for HC 120 Automatic Packaging Machine Line.







Full Automatic Plastic Packaging Machinery For Food / Cosmetic Product / Tea 2





Samples Showing For the HC 120 Automatic Packaging Machine Line.





Full Automatic Plastic Packaging Machinery For Food / Cosmetic Product / Tea 3
