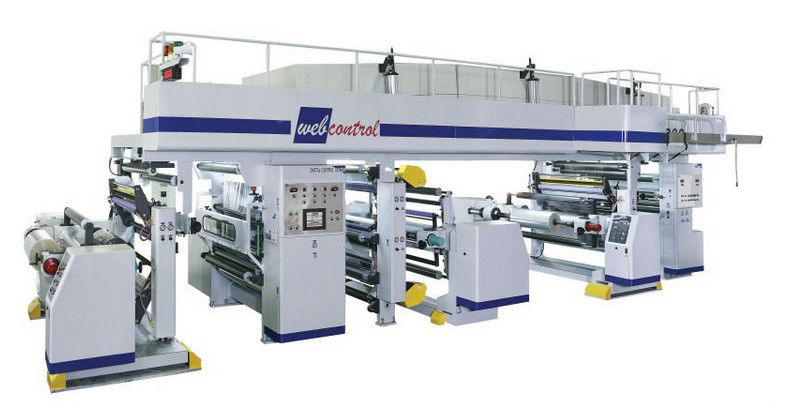

Two Unwinders Plc Dry Laminating Machine For Plastic Film or Paper Rolls

Product Details:
Place of Origin: ruian
Brand Name: shelly
Certification: ce
Model Number: 800
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: export wooden case

Detail Information

Material: Opp Bopp Pe Pvc Width: 800-2000mm
Controlled: Plc
High Light:

dry film laminator machine

,

dry lamination machine

Product Description

Two Unwinders Plc Dry Laminating Machine For Plastic Film or Paper Rolls







Quick Detail:





The machine is applied to double layer or multilayer lamination for various roll materials, such as plastic film, paper and aluminum foil, etc.

The machine has independent double-arm, dual-working position rotary turret for unwinder and rewinder. The machine adopts double-photoelectric E.P.C system, ultrasonic wave E.P.C system, PLC auto tension control system, oven hot air circulation system, and pneumatic open oven, etc., with the features of high speed laminating, low noise, low air pollution and others







Description:



1. The machine adopts Siemens PLC programmable control system; full auto tension control by PLC.

2. Taiwan Weinview color touch screen man-machine interface operation, concentrated display and control working state, speed, tension and other parameters.

3. Double frequency inverters or four frequency inverters control system is optional, Japan Yasukawa inverter.

4. Independent double-arm, dual-working position rotary turret for first unwinder, second unwinder and rewinder.

5. Air-expansion shaft for first unwinding, second unwinding and rewinding.

6.Double-photoelectric computer E.P.C system is installed at first unwinding and ultrasonic wave E.P.C system is installed at the exit of oven.

7. Low friction pneumatic floating roller is installed at the entrance of oven; full auto tension control by PLC inside the oven.

8. Glue spreading by anilox roller, doctor blade from Switzerland, independent motor responsible for horizontal moving of blade holder.

9. Conductive oil heating inside laminating hot roller, with features of even temperature and power saving.

10. Gluing pressing roller and laminating pressing roller adopt pneumatic pressure and the pressure is adjustable.

11 Total length of the oven is 8 meters, with pneumatic open; inner guide rollers are shaped in arch, with belt transmission actively; aisle and guardrail are installed at the side of the oven.

12 The oven is divided into 4 sections with external electric heating system and temperature for every section can be regulated independently.

13. Hot air circulation structure is designed inside the oven and the oven inner adopts stainless steel 304; the heat can be recycled and save energy.

14. Front exhaust hood is installed at the entrance of the oven and exhaust the gas of high concentration volatilized initially.

15. All guide rollers are highly hardened aluminum alloys, with dynamic equilibrium treatment





Applications:



This series of Laminating Machines are suitable for composition of all kinds of materials in packing industry such as plastic-plastic, paper-plastic and aluminum-plastic compositions.

Tension, pressure, temperature manually.

Edge correction device (EPC)

High-level efficient drying tunnel





Specifications :





Model

600

800

1000

Width of laminating

600mm

800mm

1000mm

Laminating stratification

2 layers

2 layers

2 layers

Laminating speed

10-120m/min

10-120m/min

  10-120m/min

Roll material Diameter


  600mm

 600mm

 600mm

Oven temperature

  120°c

  120°c

  120°c

Total power

  44kw

  48kw

  52kw

Weight

  7500kg

  8200kg

  8900kg

Overall dimenson

9600X2400X3300mm

 9600X2650X3300mm

9600X2850X3300mm



Two Unwinders Plc Dry Laminating Machine For Plastic Film or Paper Rolls 0
