High Lumen V Shape LED Refrigerator Light Tube T8 with 110lm/w IP65 CRI80 DLC Listed

Product Details:
Place of Origin: China
Brand Name: FY V Shape LED Refrigerator Light Tube
Certification: UL/cUL DLC
Model Number: FY V Shape LED Refrigerator Light Tube
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 9.9-29.9 per piece
Packaging Details: V Shape LED Refrigerator Light Tube: 20pcs/carton, 132*26*23cm/box
Delivery Time: 5-7 days for sample; 7-15 days for bulk order
Payment Terms: T/T, Western Union
Supply Ability: 100000 pieces per month

Detail Information

Material: Aluminum+PC Cover Length: 2ft 3ft 4ft 5ft 6ft 8ft
Input Voltage: AC100-277V Light Source: Epistar SMD2835/3528
Efficiency: 120LM/W Power Method: Single And Double Ended Power Input
End Cap Option: O Shape And D Shape Lens Option: Clear, Frosted
Color Temperature: 2700-7000K Beam Angel: 120 Degree And 240 Degree
Driver Type: External Driver CCT: Warm White,natural White, Cool White
Warranty: 5 Years Lifespan: Over 50000 Hours
CRI: Ra>80 Application: Cooler Or Freezer
Color LEDs: Yellow, Green, Blue
High Light:

high power led tube light

,

4ft led tube

Product Description

High Lumen V Shape LED Refrigerator Light Tube T8 with 110lm/w IP65 CRI80 DLC Listed


Description of V Shape LED Refrigerator Light Tube
1. Power method: Single and Double Ended Power Input
2. Lumens: 2000LM
3. Input Voltage:120-277V AC,50/60Hz Output:32-42V DC
4. Color Temperature:Warm white, natural white, cool white
5. Beam Angle: 120 and 240 degree




Specifications of
V Shape LED Refrigerator Light Tube



2 rows with V shape beam angle (UL cUL  DLC)
Model Power(W) Led Qty(Pcs) Voltage(V) CCT(K) Luman(lm) length Led Lens PFC CRI
FY-T8-1200ECD180 18W 192 100-277V 2700-6500 1800±10% 1.2M Clear/Frosted >0.9 >80
FY-T8-1500ECD180 22W 216 100-277V 2700-6500 2200±10% 1.5M Clear/Frosted >0.9 >80
FY-T8-1800ECD180 26W 240 100-277V 2700-6500 2600±10% 1.8M Clear/Frosted >0.9 >80




Features of
V Shape LED Refrigerator Light Tube
1. High efficiency refrigerator led tube lamp>120lm/w.
2. Good heat dissipation structure:Extra aluminum board on the alumunum housing
Thermal Grease on the aluminum board
3. UL/CUL approval power supplier with imported Electronic Components Electronic Components
4. Other sizes and leds for your choice and all are UL approval.
5. UL/CUL/CE/ROHS/DLC approval




Production Capability of
V Shape LED Refrigerator Light Tube
1. Monthly output: 80,000pcs
2. Total Area: 3000m2
3. Manufacturing Proces Covered in the Audit Process:
Incoming Material Inspection → Assembly PCB → Jointing → QC Inspection → Test→Assembly → Aging Test → Voltage Resistance Test → Function Test → Clean →Finished Goods Inspection → Packaging → Warehouse/Delivery



Packaging details of
V Shape LED Refrigerator Light Tube
Carefully packed in hard paper tubes. High class paper tubes guaranteed.





FAQ of V Shape LED Refrigerator Light Tube

1. For all your inquires about us or our products, we will reply you in detail within 24 hours
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM.


Trade terms of V Shape LED Refrigerator Light Tube
1.Payment terms:30% T/T before production, full payment before delivery
2.Delivery time:15-20 days after payment
3.Samples for quality reference are available
4.Shipping port: Shenzhen
5.Tracking number will be sent to you once we ship out the goods
6.Discounts are negotiable according to quantity.



FAQ of V Shape LED Refrigerator Light Tube

Q1: What is the Warranty for the lamps?

A1: For FY Lighting LED Tubes,we have 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What is colour temperature?

A2:FY Lighting offer led tubes in warm white, natural white,pure white and cool white with colour temperatures measured in Kelvin (K).

  • Warm white = 2700K-3200K
  • Natural white = 4000K-4500K
  • Cool white = 5000K-7000K

Q3: What is CRI?

A3: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.For LED tubes,the CRI is mostly 90Ra.



Products Group from FY Lighting

b. U shape Led tubes
c. Led panel lights
d. Led tubes for freezer
e. EmergencyLed tubes
f.  Motion sensor Led tubes
g. Freezer LED tubes
h. T5 LED tubes

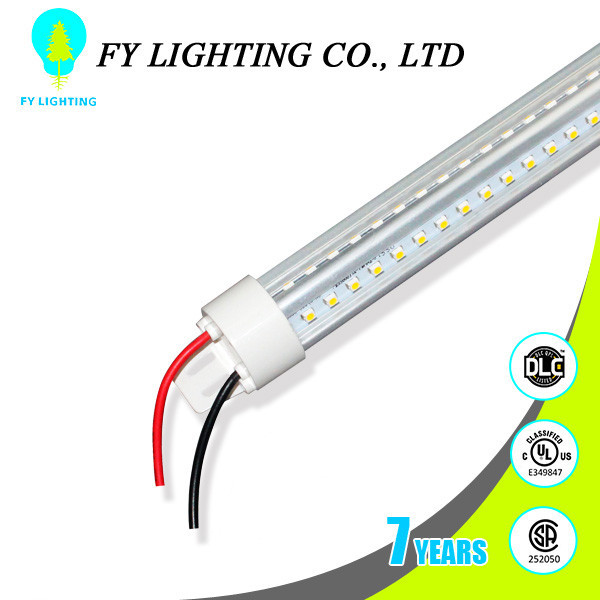

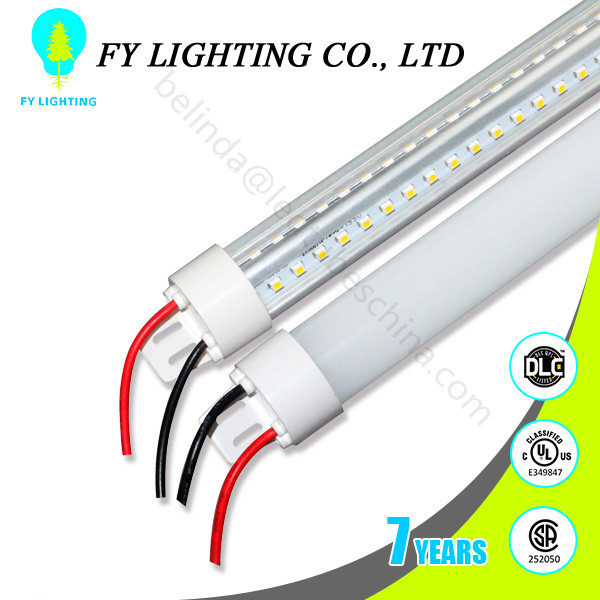

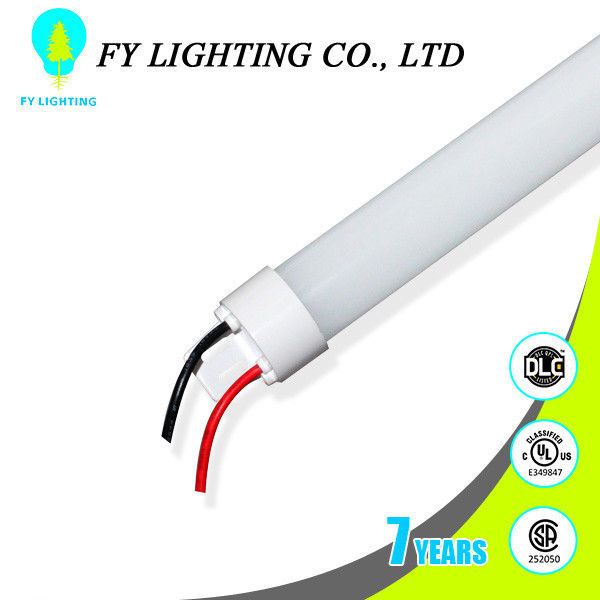

Photos of  V Shape LED Refrigerator Light Tube

CCT of
 V Shape LED Refrigerator Light Tube
High Lumen V Shape LED Refrigerator Light Tube T8 with 110lm/w IP65 CRI80 DLC Listed 0


Applications of
 V Shape LED Refrigerator Light Tube
High Lumen V Shape LED Refrigerator Light Tube T8 with 110lm/w IP65 CRI80 DLC Listed 1


Shipping details of
 V Shape LED Refrigerator Light Tube
High Lumen V Shape LED Refrigerator Light Tube T8 with 110lm/w IP65 CRI80 DLC Listed 2





"Top quality,Most Competitive price and Pleasant & Timely service for global customers."

Sample is welcomed for testing.Customers and distributors from all of the world are welcomed to negotiate with us for business cooperation. Let's join and strive for mutual prosperity.
