New Style Maxi Skirts Woman Fashion Linen Skirts
Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | RISHBIN |
Certification: | CE |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 Set |
Price: | Contact Us |
Packaging Details: | Standard packing |
Delivery Time: | 60 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 20 Sets Per Year |
Detail Information |
|||
Thickness Of The Plate: | 0.4-0.6mm | Width Of Plate:: | 330mm |
---|---|---|---|
Roller Station: | 17 Rows | Voltage:: | 380V/50HZ |
Color: | Blue Or Client's Demand | Control System: | PLC |
High Light: | downspout roll forming machine,portable downspout machine |
Product Description

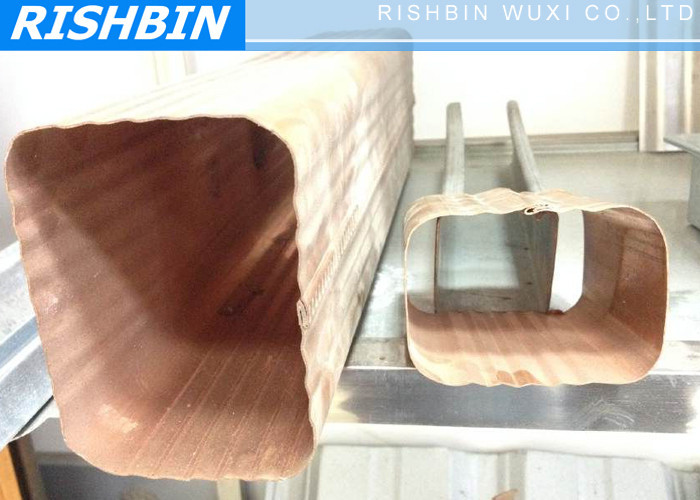

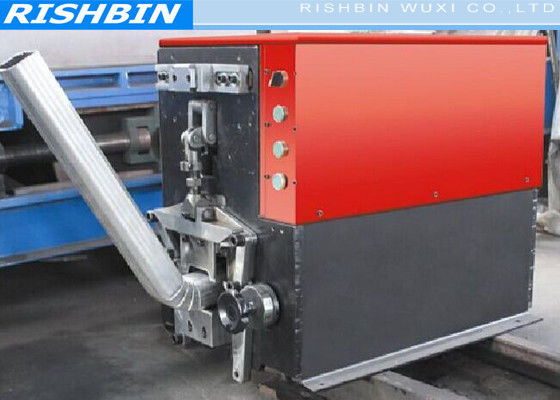

Aluminum Square Pipe Roll Forming Machine 8 - 10 m/min Production Capacity
Square Pipe Roll Forming Machine Technical Parameters
Power(W): | 5.5+3 KW | Weight: | 600 kg |
Shaft diameter |
65mm |
Production Capacity: | 8-10m/min |
thickness of the plate: | 0.4-0.6mm | After-sales Service Provided: |
Engineers available to service machinery overseas |
Voltage: | 380V.50HZ.3Phase | Dimension(L*W*H): | 7800X1350X1510mm |
Certification: | CE | Warranty: | 1 years |
control system: | PLC | Frame material: | 300 H-high grade steel |
Roller station | 17 rows | diameter of roller: | 80mm |
Suitable to Process: |
color steel plate,PPGI, galvanized steel sheet, Aluminum plate |
width of plate: | 330mm |
Cutting blade material: |
Cr12 mould steel with quenched treatment |
Shaft material: |
High grade No.45 forged steel ,with 5 nm chrome coated |
Above parameters are standard,we can design and make some change according to your requirement.
Square Pipe Roll Forming Machine Working Flow
Decoiling → Feeding & Guiding → Roll Forming → Cutting → Finished Products To Support Table
Packaging & Shipping
1. Main roll forming machine and un-coiler is maked (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3. One set of machine needs a 40'container to shipping.
Our Advantage
Company Introduction
Rishbin was founded in 1999. With more than ten years' development, now it becomes a leading
professional supplier in the field of roll forming machinery industry, and exports its quality production
line to the markets all over the world.
We are one of the leading suppliers and manufacturer in china and have been supplying and making
roll forming equipment for the metal building construction industry for a long time.
